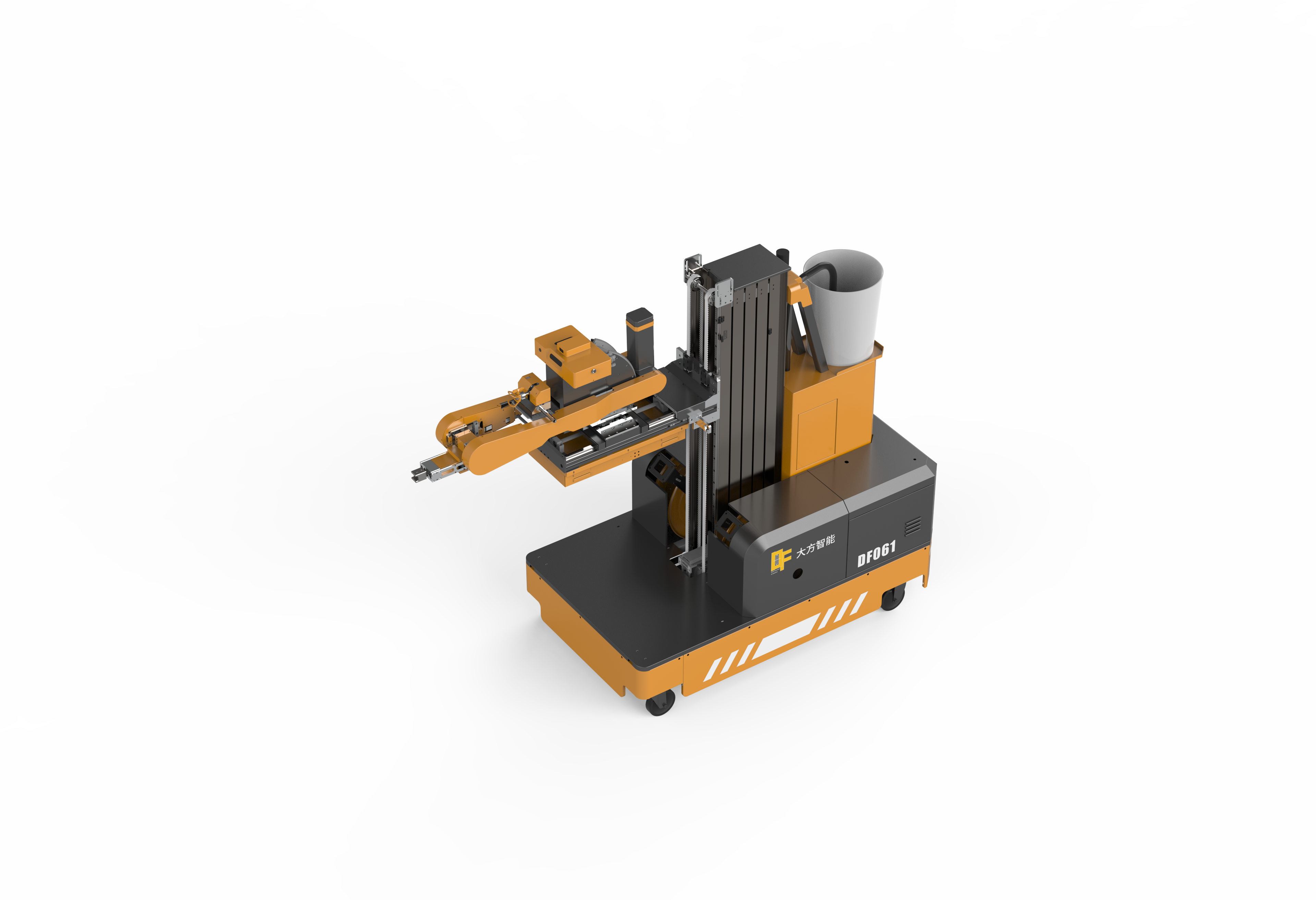

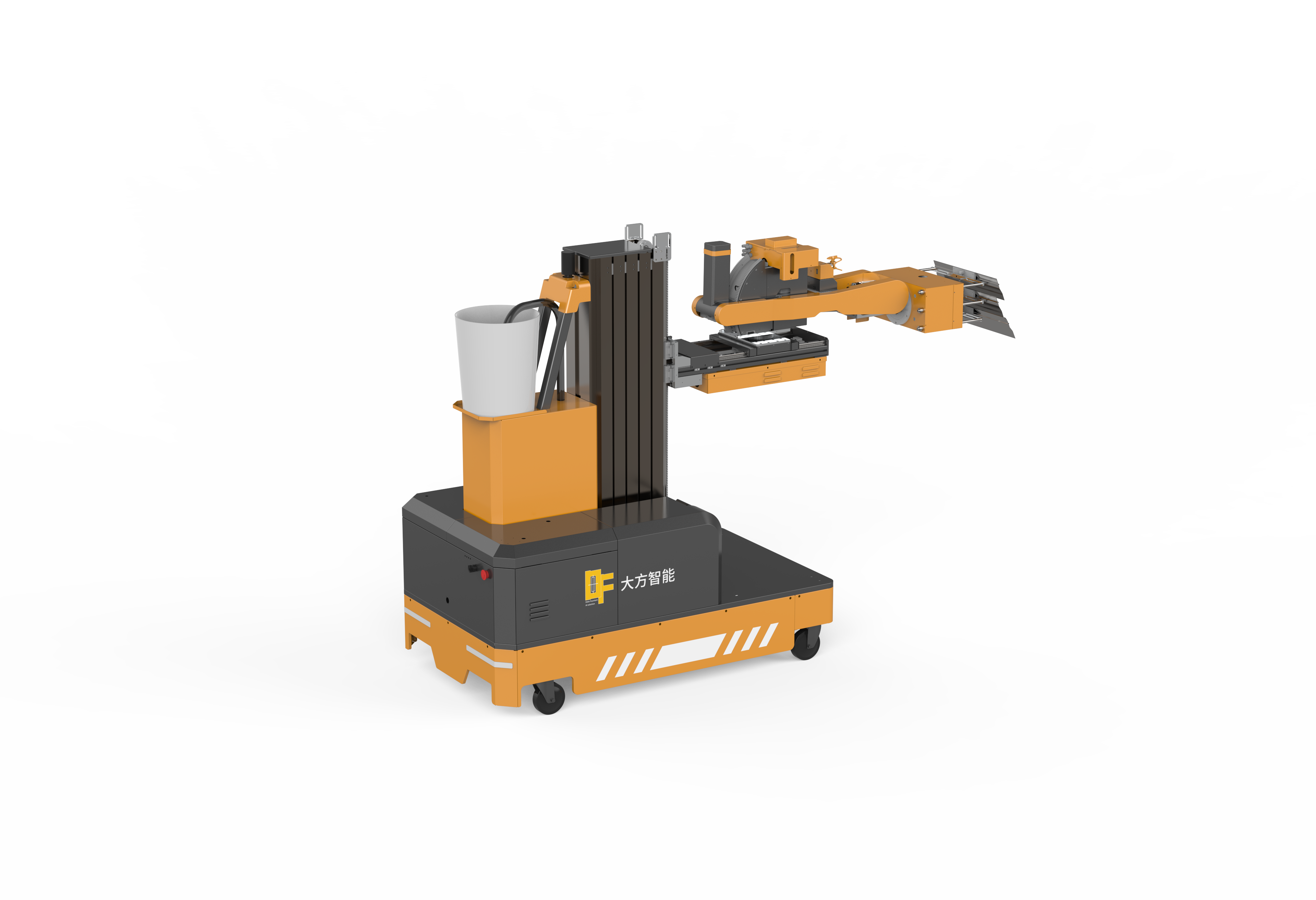

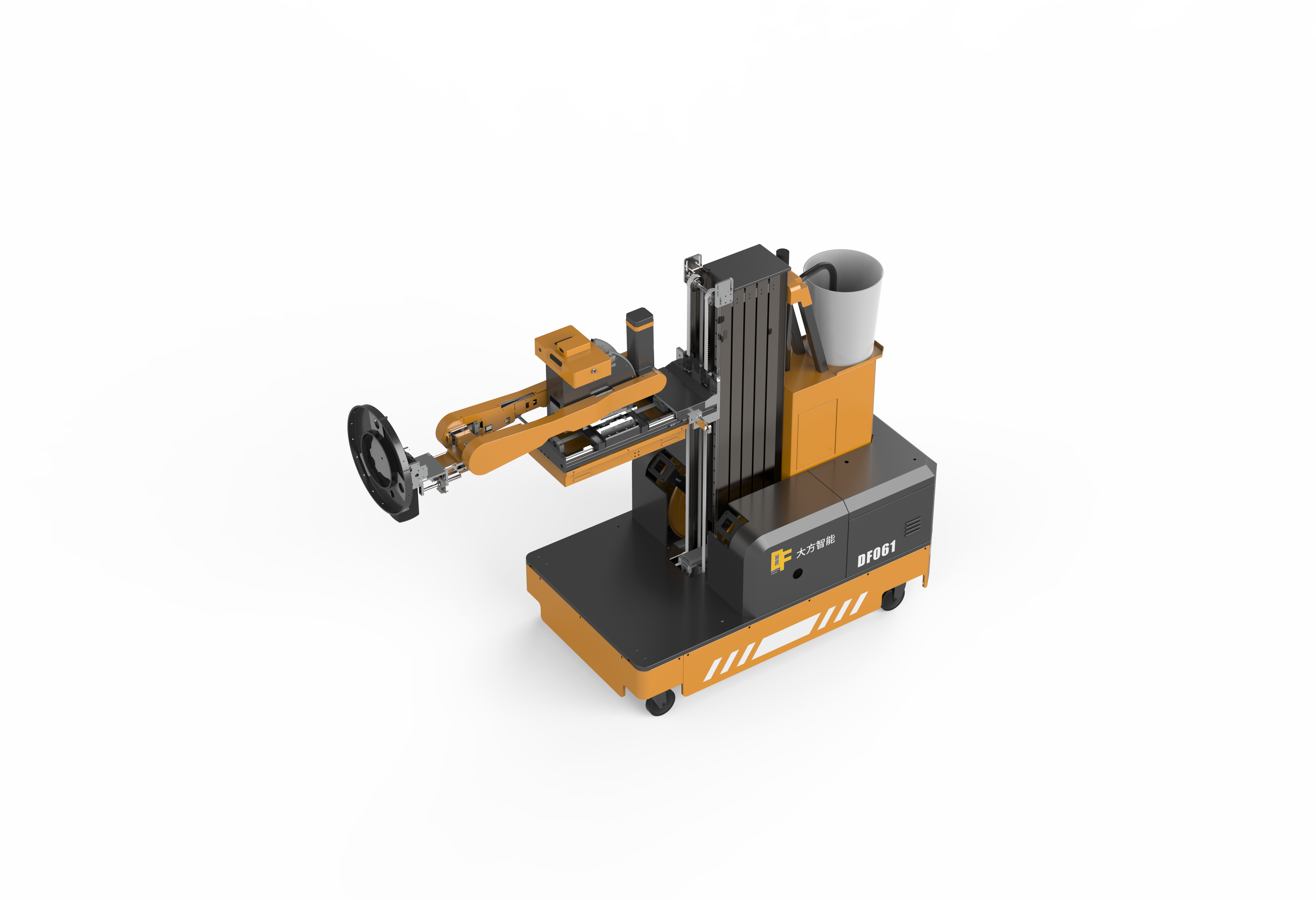

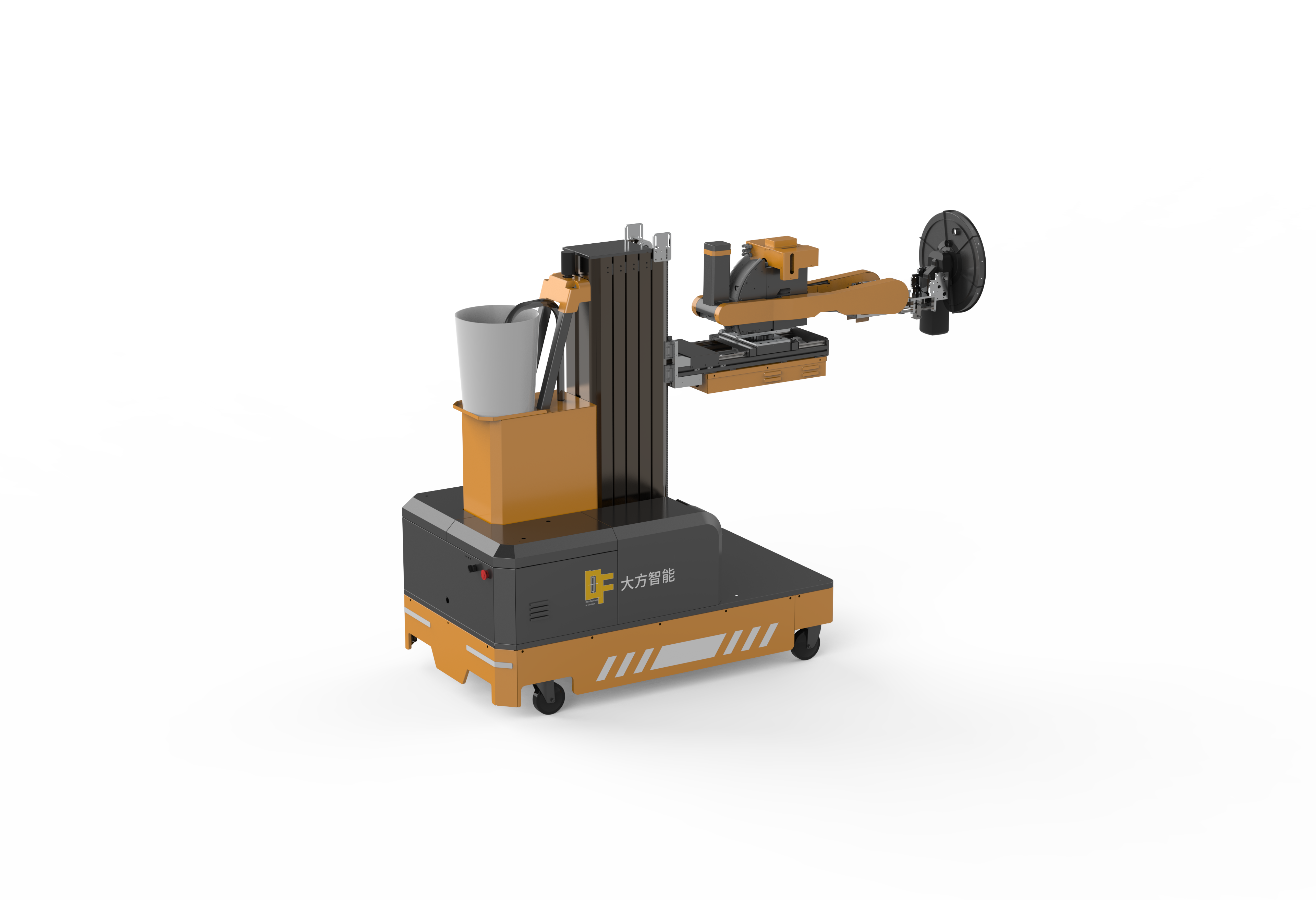

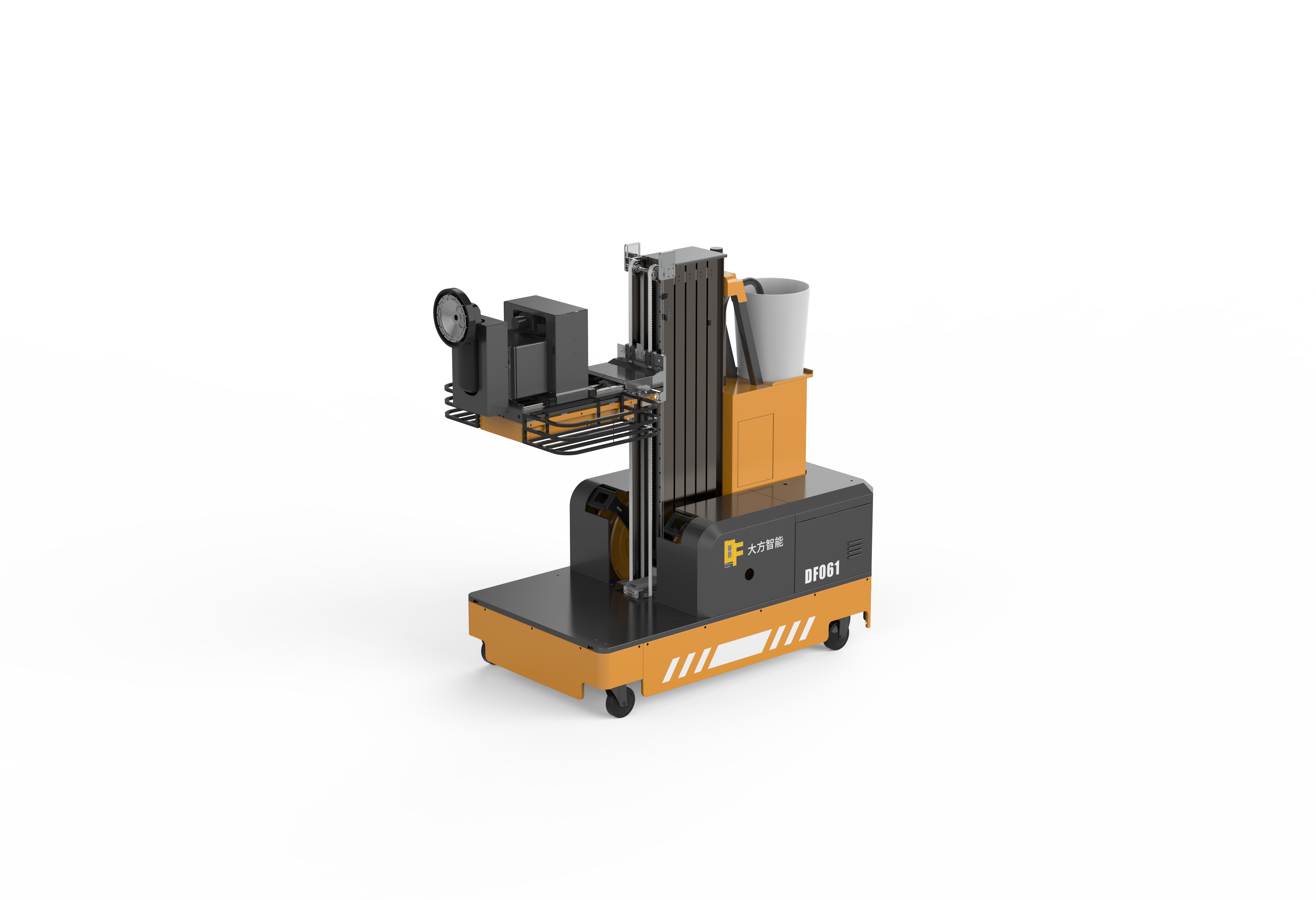

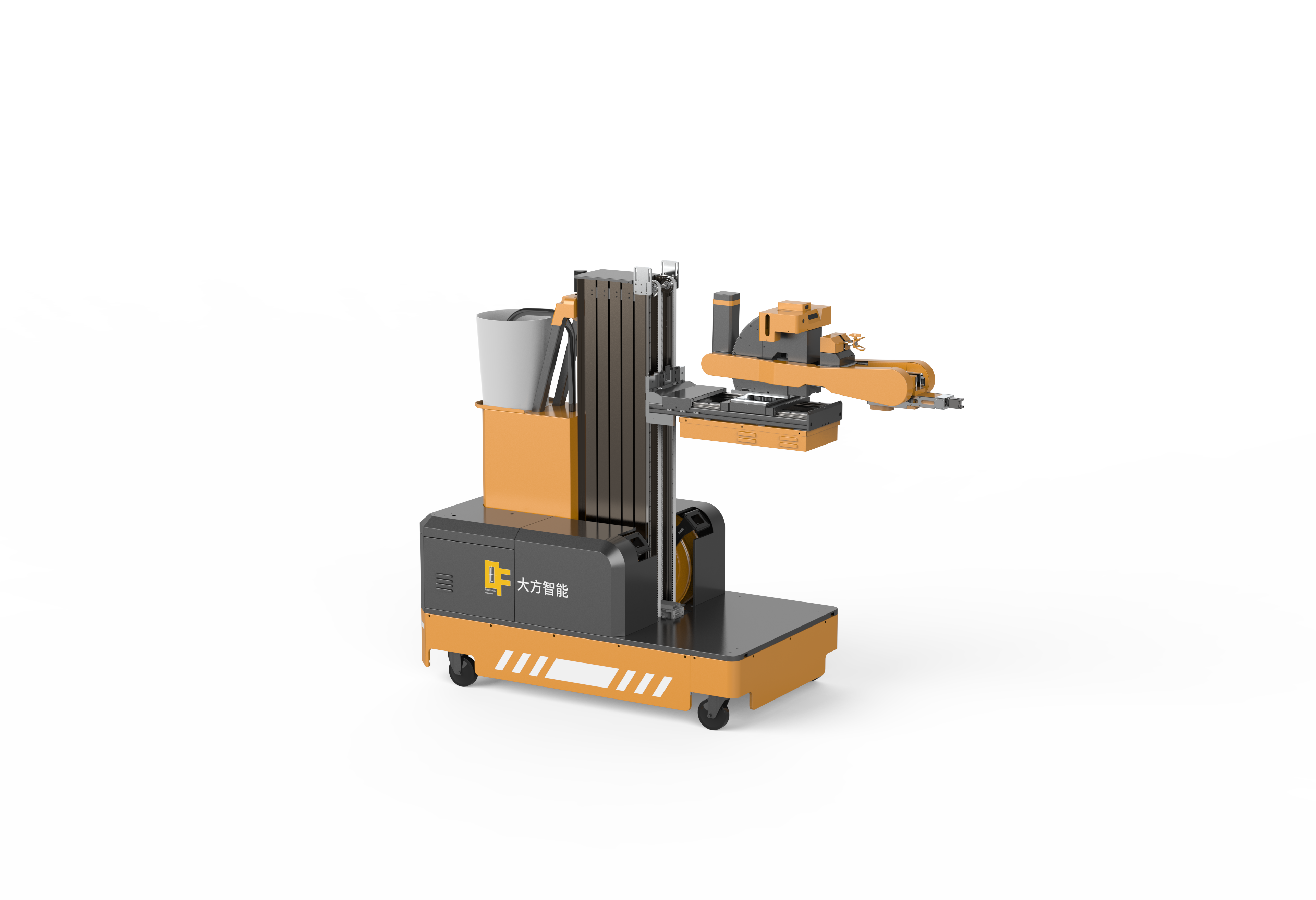

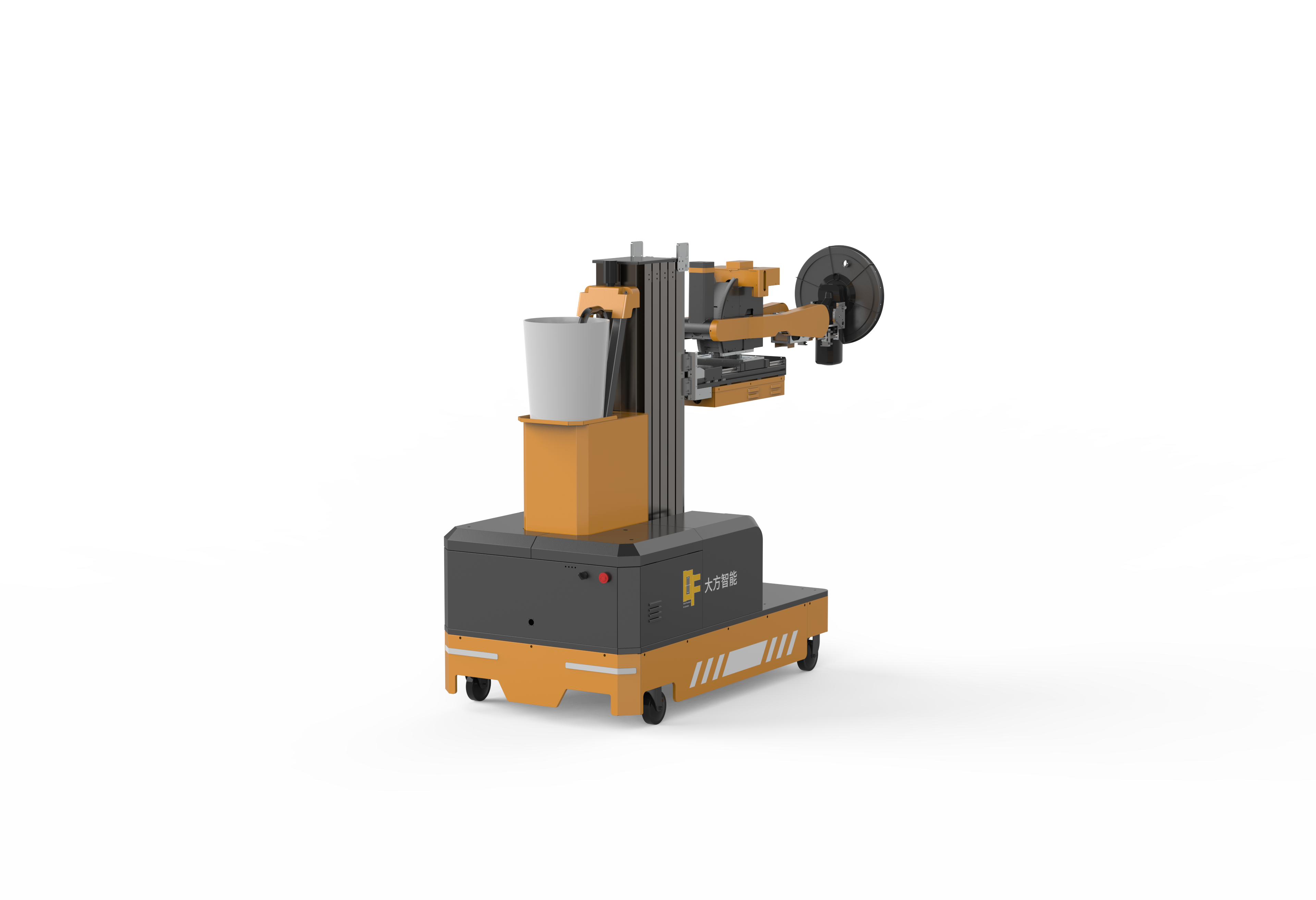

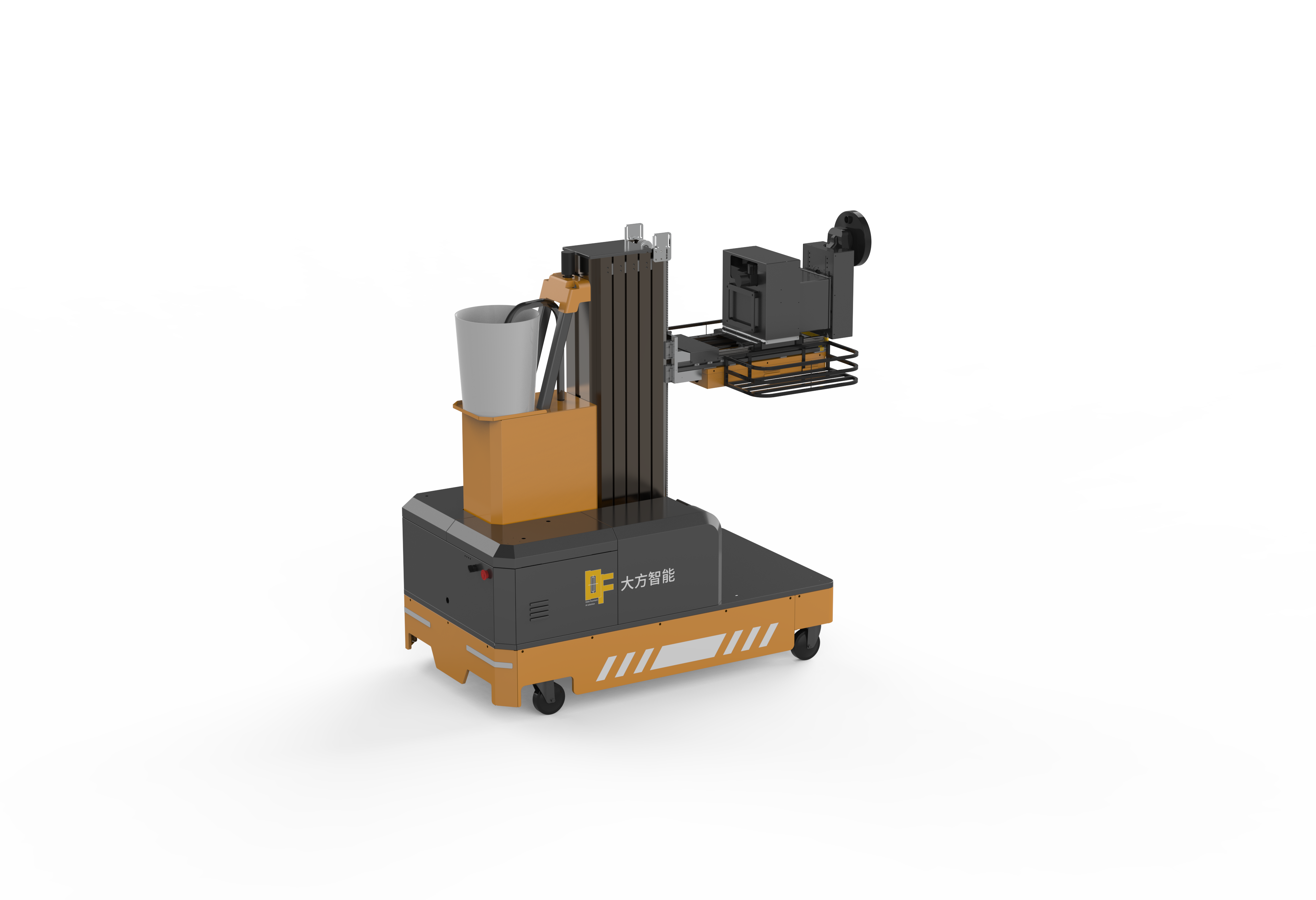

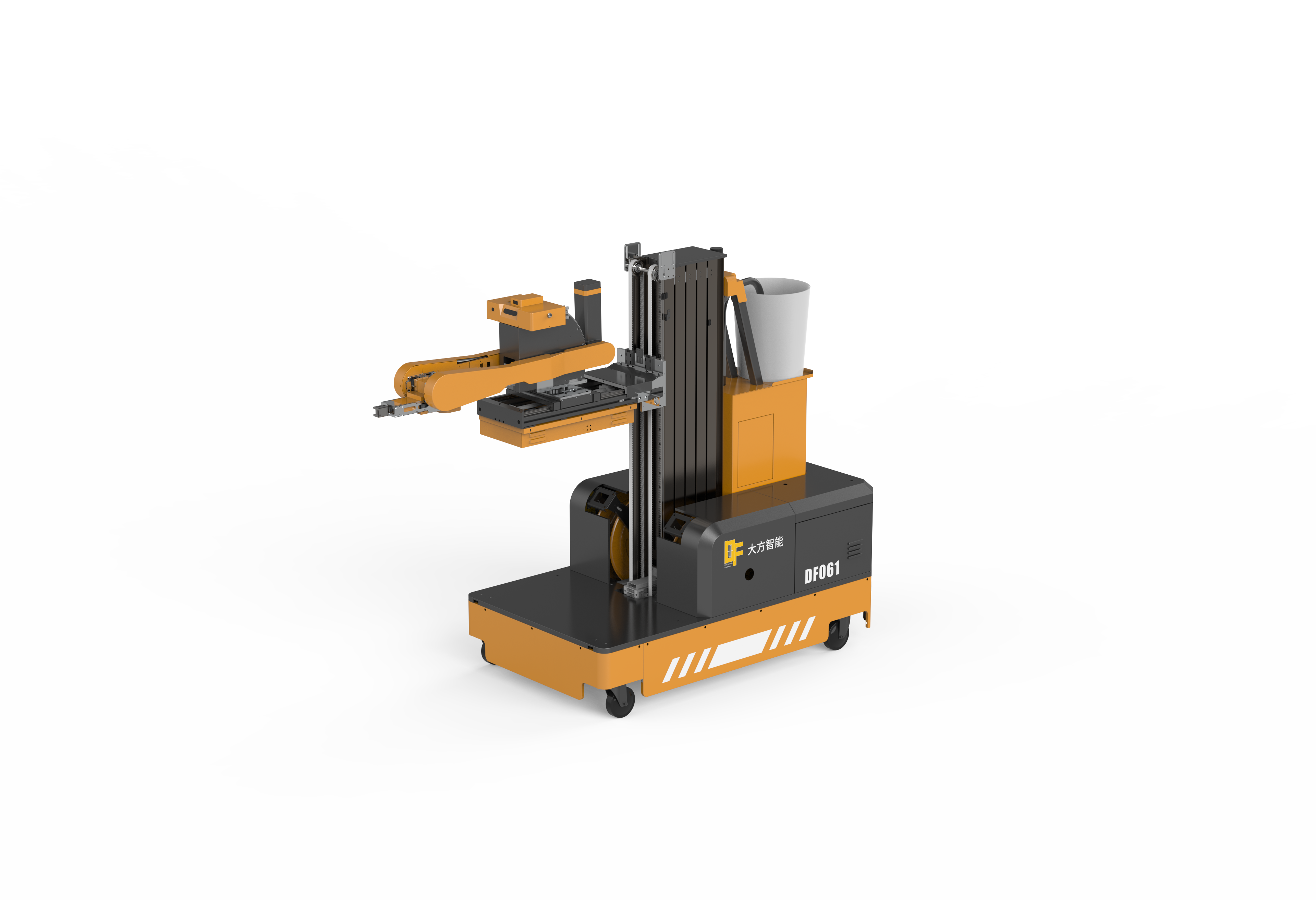

DF062-6 Meter Wall Finishing Robot

Short Description:

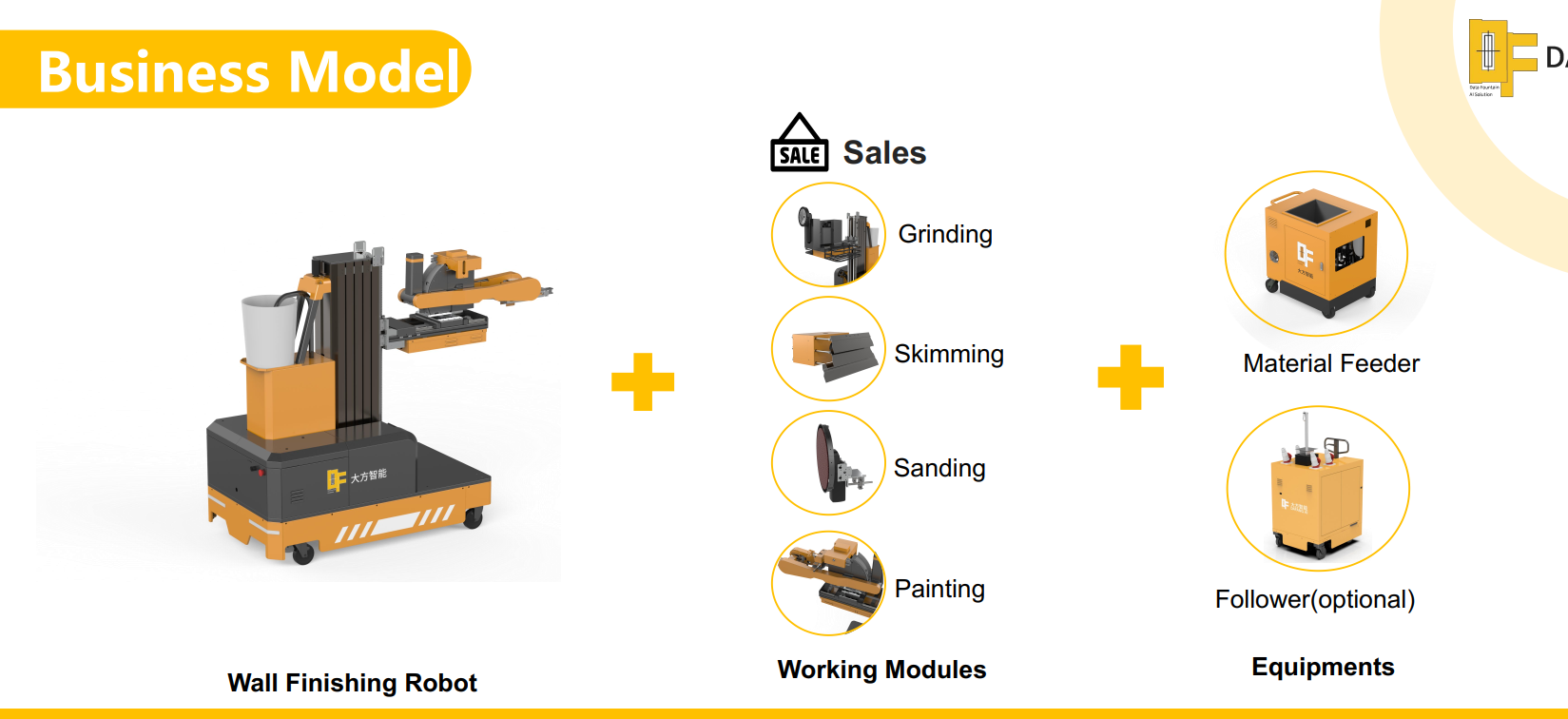

The DF062 wall finishing robot combines functions of grinding, plastering, skimming, painting and sanding.  The maximum construction height is 6 meters.

The robot can move in 360 degree, working height controlled by lifting, construction range controlled by robot’s arm can pitch, move, and rotate, construction process controlled by modules.
8 aixs

Dafang develop auto balance technology while moving, even in complex environments and uneven sites, robot can work stable and effiently.
AGV auto balance

Simply replacing the operation module, it can easily grinding, plstering, sanding, and painting, offering intelligent and efficient performance.
Multi-function


Product Detail

Product Tags

Product Description

The DF062 wall finishing robot combines functions of grinding, plastering, skimming, painting and sanding.  The maximum construction height is 6 meters.

The robot can move in 360 degree, working height controlled by lifting, construction range controlled by robot's arm can pitch, move, and rotate, construction process controlled by modules.
8 aixs

Dafang develop auto balance technology while moving, even in complex environments and uneven sites, robot can work stable and effiently.
AGV auto balance

Simply replacing the operation module, it can easily grinding, plstering, sanding, and painting, offering intelligent and efficient performance.
Multi-function

Specification

Performance Parameters Standard
Total Weight ≤300kg
Overall Size L1665*W860*H1726m
Power mode Cable: AC 220V
Paint capacity 18L(renewable)
Construction height 0-6000mm
Painting efficiency maximum 150㎡/h
Painting pressure 8-20mpa

Detail

skimming

grinding

grinding

painting
